Quick Answer: Underfloor heating in Christchurch costs between $70-$120 per square metre for electric systems and $120-$200+ per square metre for hydronic (water-based) systems. Electric underfloor heating is ideal for bathrooms and smaller areas, while hydronic systems suit whole-home heating in new builds.
What’s in This Guide
- Types of Underfloor Heating
- Installation Costs in Christchurch
- Running Costs Compared
- Which System Is Best for Your Home?
- Why Choose BT Electrical Solutions
- FAQs
Types of Underfloor Heating

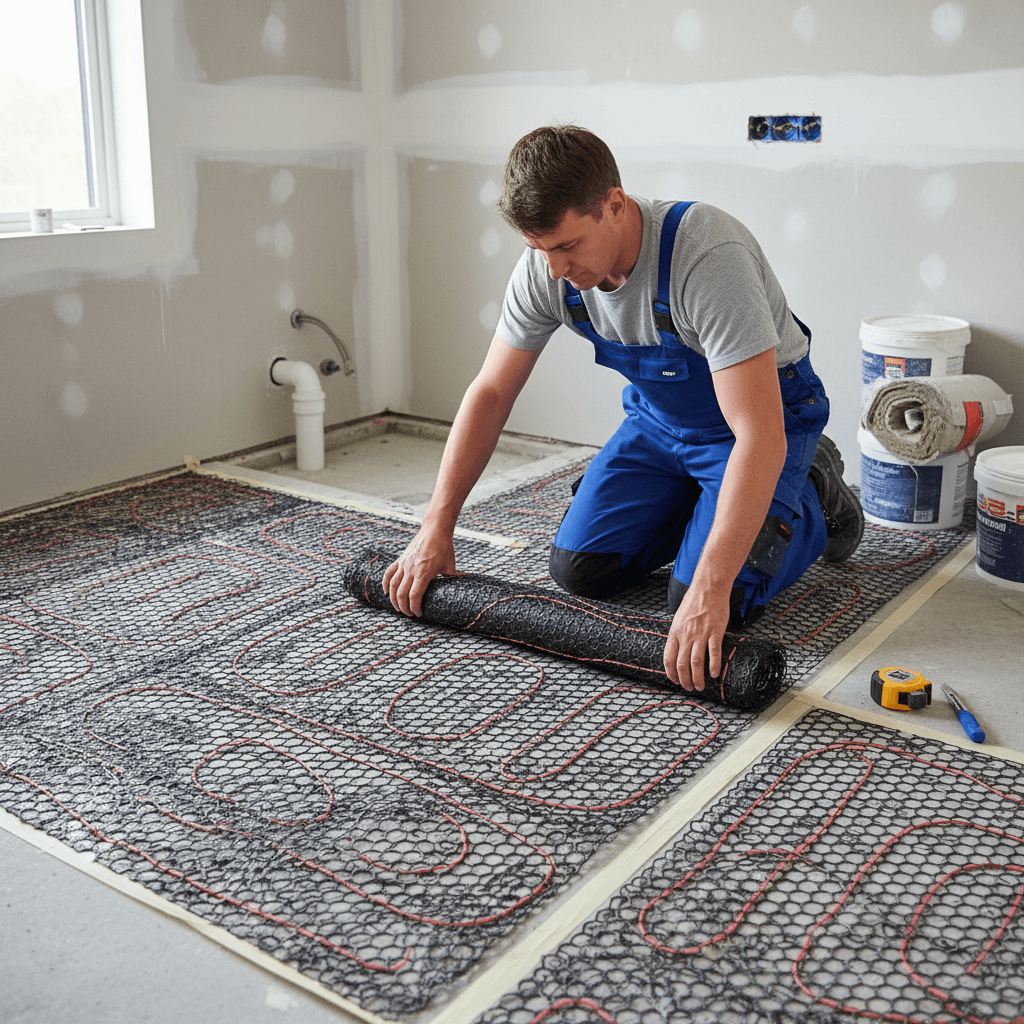

Electric Underfloor Heating
Electric systems use thin heating cables or mats installed directly beneath your floor covering. They are connected to your home’s electrical system and controlled by a thermostat. Electric underfloor heating is the most popular choice for Christchurch homeowners adding warmth to individual rooms, especially bathrooms, ensuites, and kitchens.
Pros: Lower installation cost, easy to retrofit, no maintenance, individual room control, thin profile (minimal floor height increase).
Cons: Higher running costs than hydronic for large areas, best suited to smaller zones rather than whole-house heating.

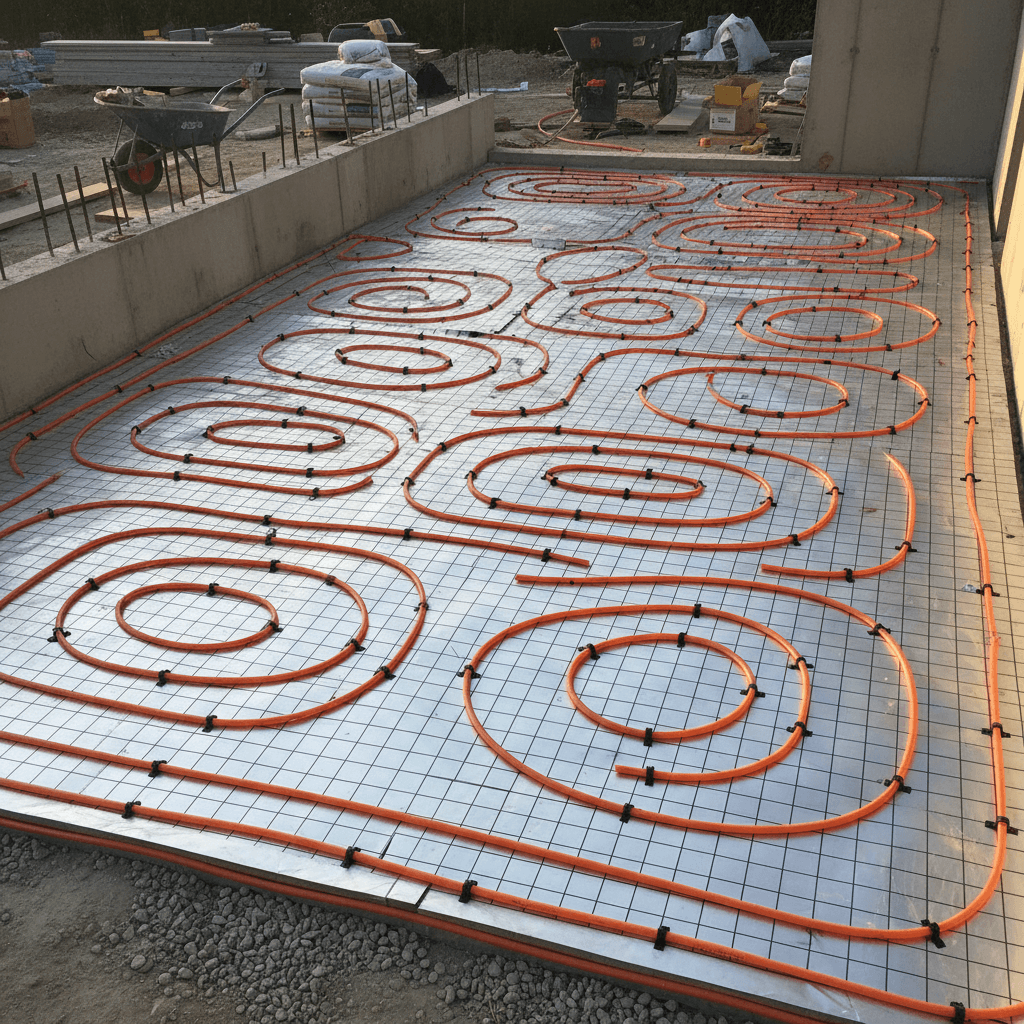

Hydronic Underfloor Heating
Hydronic systems circulate warm water through pipes embedded in or under the floor. The water is heated by a boiler, heat pump, or gas system. Hydronic underfloor heating is more efficient for heating large areas and entire homes, making it a popular choice for new builds in Christchurch.
Pros: Lower running costs for large areas, even heat distribution, works with heat pumps for efficiency, long lifespan (50+ years for pipes).
Cons: Higher installation cost, difficult to retrofit, requires a boiler or heat pump, thicker floor buildup.
Underfloor Heating Installation Costs in Christchurch
| System Type | Cost Per m2 | Typical Bathroom (6m2) | Typical Living Area (30m2) |
|---|---|---|---|
| Electric heating mat | $70 – $100/m2 | $420 – $600 | $2,100 – $3,000 |
| Electric heating cable | $80 – $120/m2 | $480 – $720 | $2,400 – $3,600 |
| Hydronic (new build) | $120 – $180/m2 | $720 – $1,080 | $3,600 – $5,400 |
| Hydronic (retrofit) | $150 – $200+/m2 | $900 – $1,200+ | $4,500 – $6,000+ |
Prices include supply and installation. Thermostat and electrical connection costs ($200-$500) are additional. Hydronic systems also require a heat source (boiler or heat pump) which adds $3,000-$10,000+ depending on the system.
Running Costs: Electric vs Hydronic
| Scenario | Electric | Hydronic (with heat pump) |
|---|---|---|
| Bathroom (6m2, 2hrs/day) | $1.50 – $2.50/day | $0.60 – $1.00/day |
| Living area (30m2, 6hrs/day) | $8 – $12/day | $3 – $5/day |
| Whole home (100m2, 8hrs/day) | $25 – $40/day | $8 – $15/day |
| Winter season (Jun-Aug) | $700 – $3,600 | $220 – $1,350 |
Estimates based on Christchurch electricity rates of approximately $0.28-$0.35/kWh. Actual costs vary based on insulation, floor type, thermostat settings, and usage patterns.
For smaller zones like bathrooms, electric underfloor heating is very affordable to run. For whole-home heating, hydronic systems paired with an efficient heat pump are significantly cheaper to operate despite the higher upfront cost.
Which System Is Best for Your Christchurch Home?
Choose Electric Underfloor Heating If:
- You want to heat individual rooms (bathrooms, ensuites, kitchens)
- You are renovating and want to add heating under new flooring
- Budget for installation is a priority over running costs
- You need a system with no maintenance requirements
- Floor height buildup needs to be minimal
Choose Hydronic Underfloor Heating If:
- You are building a new home and want whole-house heating
- Long-term running costs are a priority
- You want to pair underfloor heating with a heat pump for maximum efficiency
- You prefer consistent, even warmth across large open-plan areas
- You plan to stay in the home long enough to recoup the higher installation cost
Christchurch Climate Considerations
Christchurch winters regularly drop below freezing overnight, and many older homes are poorly insulated. Underfloor heating provides consistent warmth from the ground up, which is especially effective in Canterbury’s dry, cold winters. Concrete slab floors, common in post-earthquake Christchurch rebuilds, are ideal for underfloor heating as the slab stores heat and releases it gradually throughout the day.
Why Choose BT Electrical Solutions
BT Electrical Solutions provides professional electric underfloor heating installation for Christchurch and Canterbury homes. As part of our heating solutions in Christchurch, we handle the full electrical connection including thermostat installation, circuit wiring, and testing to ensure your system operates safely and efficiently.
As a local, family-run business, we provide honest advice on the best system for your space, upfront pricing, and quality workmanship backed by our 12-month guarantee.
Frequently Asked Questions
Can you install underfloor heating in an existing Christchurch home?
Yes, electric underfloor heating can be retrofitted under new flooring during a renovation. Hydronic systems are more difficult to retrofit and are generally only practical during major renovations or extensions where the floor is being replaced.
Does underfloor heating work with all floor types?
Underfloor heating works with most floor types including tiles, polished concrete, engineered timber, vinyl, and laminate. Tiles and concrete are the most efficient as they conduct heat well. Thick carpet with heavy underlay can reduce effectiveness.
How long does underfloor heating take to warm up?
Electric systems typically reach full temperature in 20-45 minutes. Hydronic systems in concrete slabs take longer (1-3 hours) but retain heat for longer after turning off. Using a programmable thermostat to pre-heat before you need the room warm is the most efficient approach.
Is underfloor heating safe?
Yes, when installed by a licensed electrician. Modern electric underfloor heating systems include multiple safety features including earth fault protection and temperature limiting. The surface temperature is typically 25-28 degrees, which is warm but not hot enough to cause burns.
Do I need a dedicated electrical circuit for underfloor heating?
For larger installations (above approximately 10m2), a dedicated circuit from the switchboard is recommended. Smaller bathroom installations can sometimes share an existing circuit, but this depends on the current load. Your electrician will assess this during the quoting process.
